  • Flexibile Flos Channel Plate

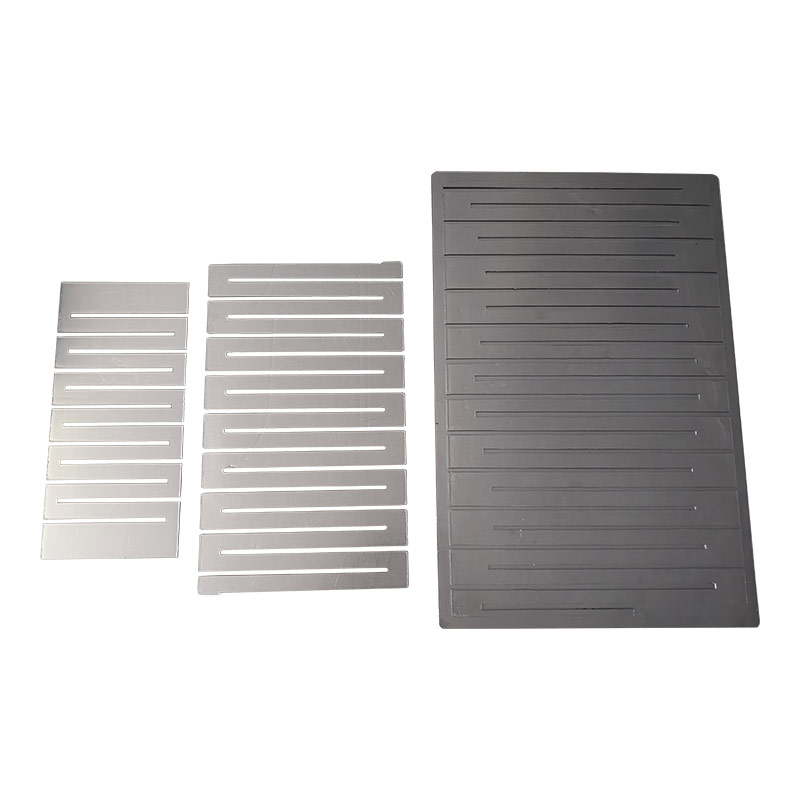

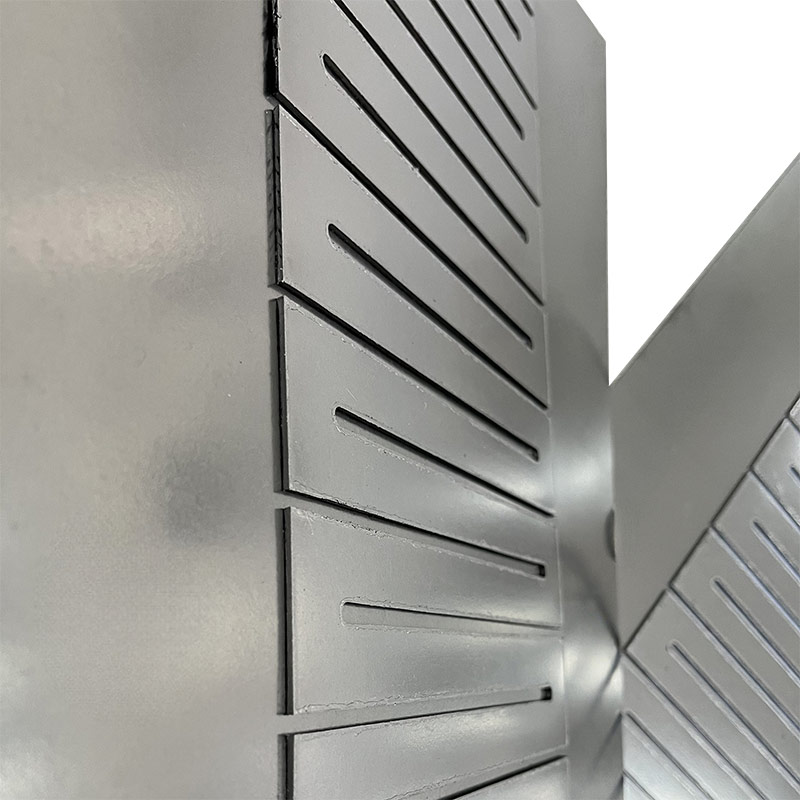

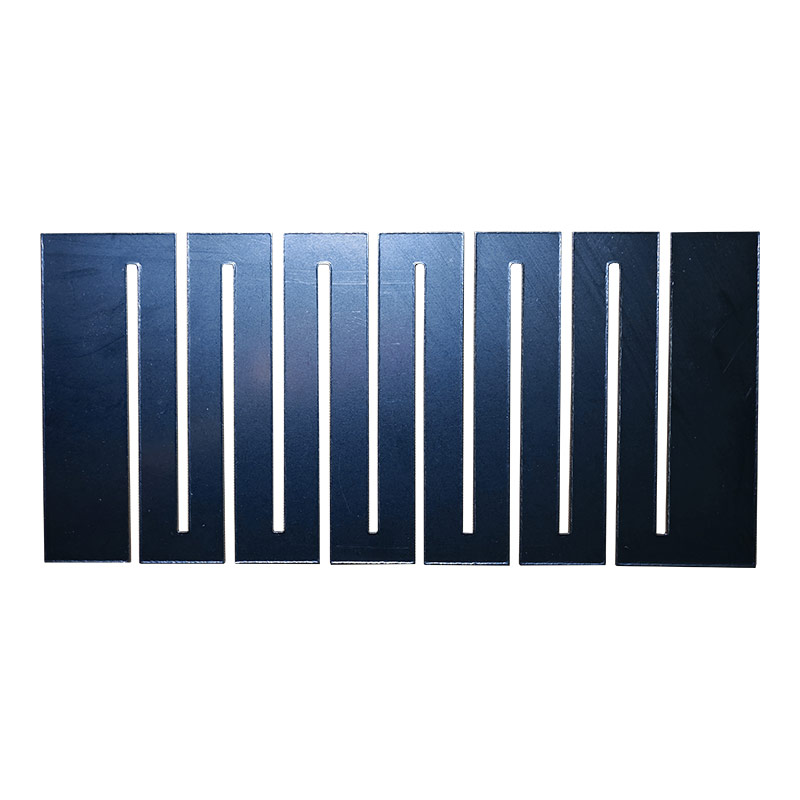

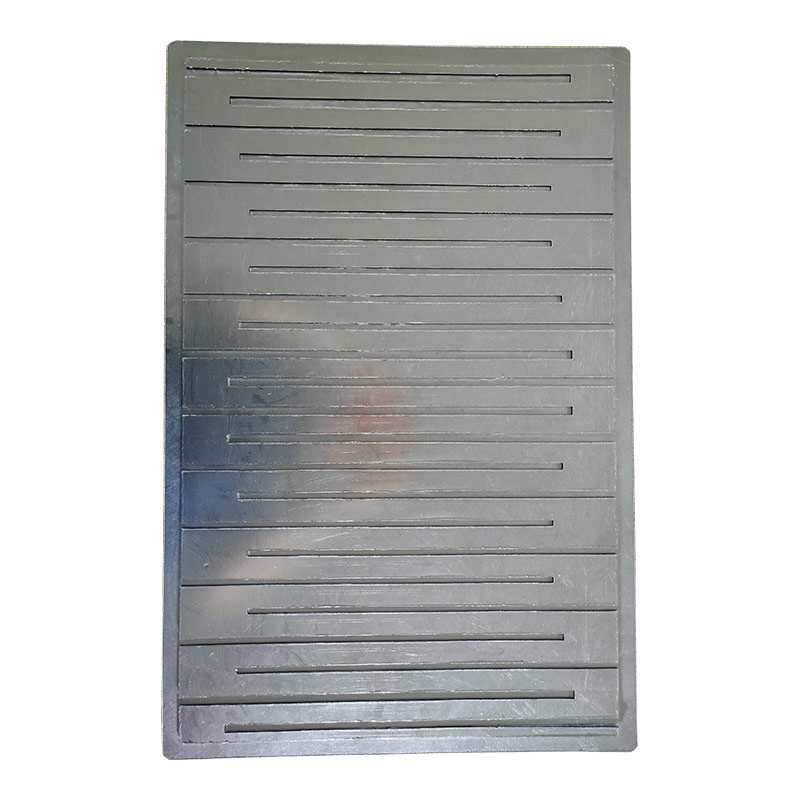

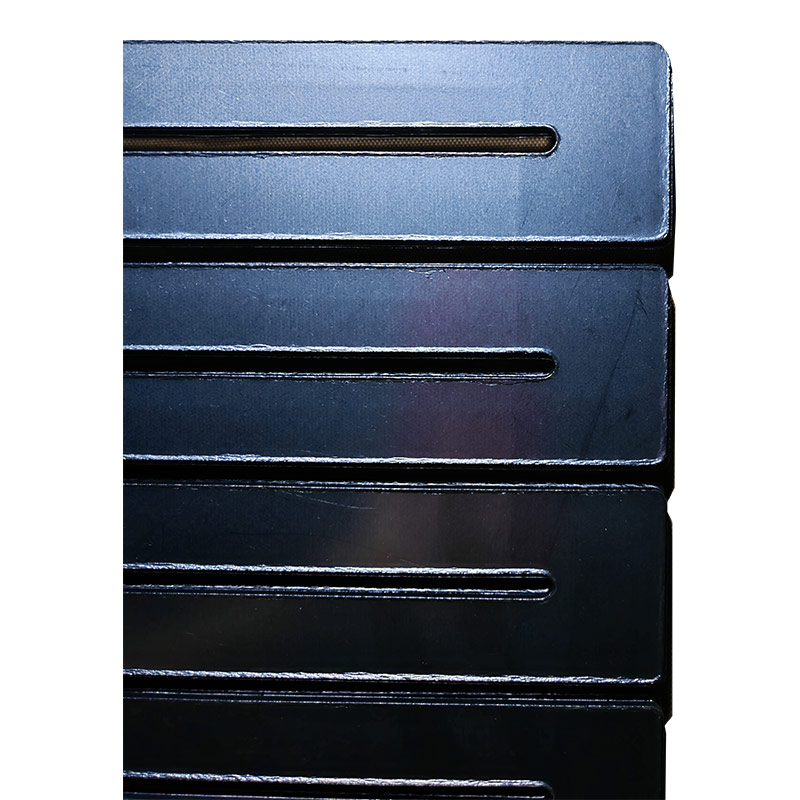

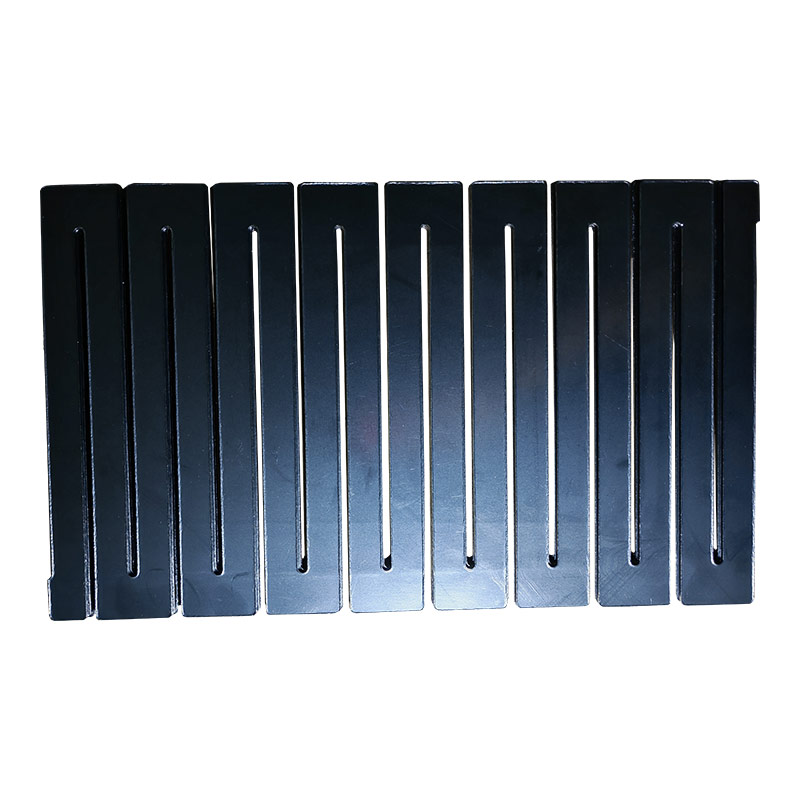

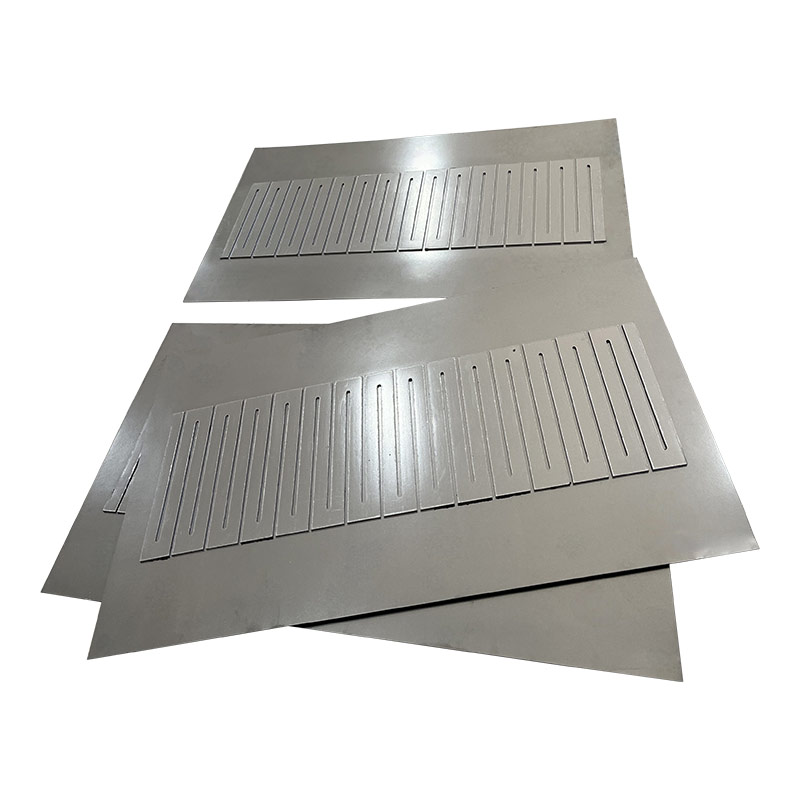

Flexibile Flos Channel Plate

Productum

Purae carbonis materiae bracteae ex graphite dilatato sub alta pressione factae in varias structuras canalis fluxus discursum possunt per machinis intercisis, machinis insculptis, etc. Eius features altae electricae conductivity, altae corrosionis resistentia, bonae vis mechanicae et humilis gas permeabilitas. Lamina currens est key component intra acervum fluens altilium. Extrinsecus plerumque lamina plana cum striatis vel canalibus insculptis designatis. Diversa consilia aequilibrant inter guttam fluidi pressionis, uniformitatem distributionis et detrimentum sentinam. Puritas major quam 99%. Robur distrahens ≥5Mpa, conductivity electrica ≥200S/cm. Laminae fluxus canalis a nostris productae altam puritatem habent et densitatem maiorem quam 1.35g/cm2, operando firmiorem..

Inquire Now

  • Product Details
  • Contact Us
Nomen Unitas Fluxus flexibilis laminae canalis
Crassitudo mm 1.0-2.5
Density g/cm³ 1.35-1.5
Latitudo mm ≤850
Longitudo mm ≤1300
Extensio vires Mpa ≥5
Compressive vires Mpa ≥20
Conductivity in area conductive S/cm ≥200
Electrical conductivity in welding area S/cm -
Carbon content % ≥99.9
Hydrogenium tradendi rate（0.2Mpa） cm 3 /cm 2 ·min <1x10 -5
Corrosio current A -
