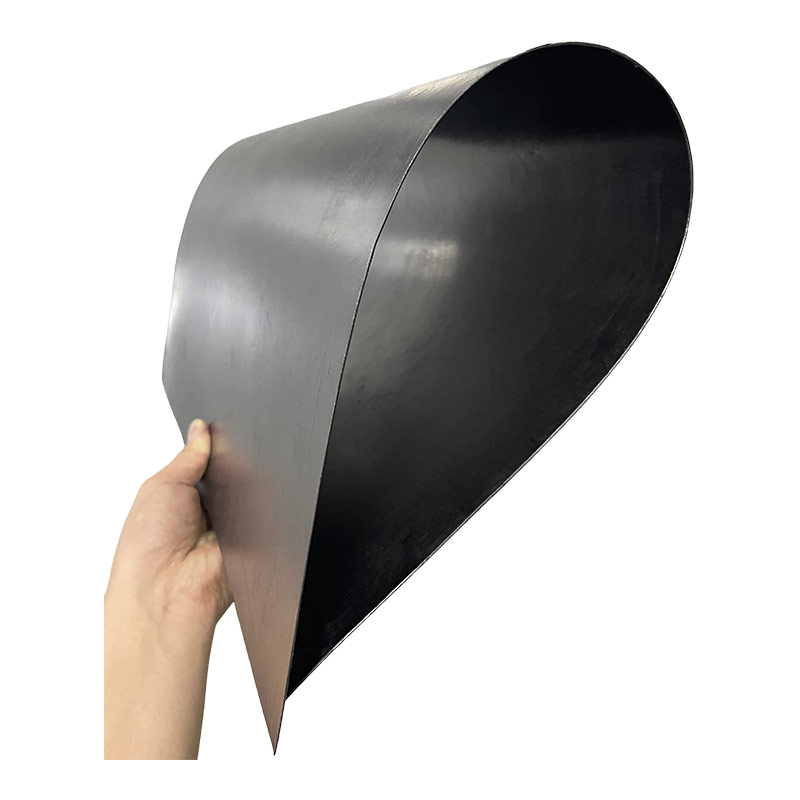

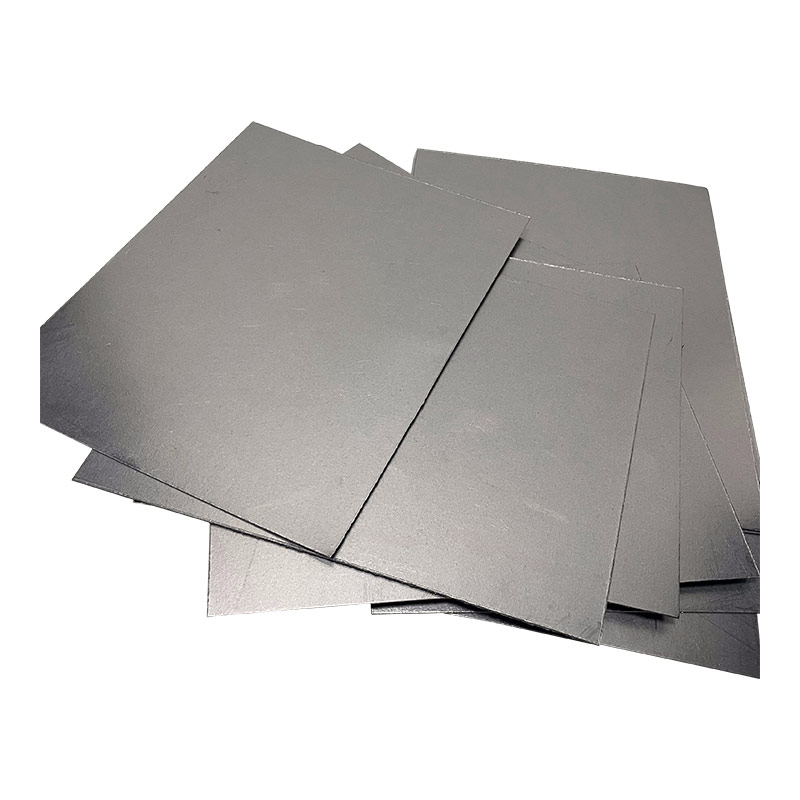

Carbon Fiber Compositum Flexibile Graphite Bipolar Plate

Productum

Societas nostra graphita bipolaris flexibilis composita est lamina prima carbonis fibra graphita bipolaris in industria flexibilis roborata. Sub condicione procurandae conductionis electricae super 320 S/cm, etiam in 360° inclinatam non frangit, cum anti-compressione robur ≥ 200 Mpa et anti-flexionis virium ≥ 50 Mpa. Ad pressionem 0.2 Mpa, hydrogenium permeabilitas minor est quam 5 x 10-6 cm 3 /cm 2 ·min. Per extensionem compago fibri carbonii, primam laminam graphitam bipolarem flexibilem in Sinis fecimus, quae ad margines conflari potest.

Inquire Now

  • Product Details
  • Contact Us
Nomen Unitas Fibra carbonis composita flexibilis laminae graphitae bipolaris aucta
Crassitudo mm 0.6/0.8
Density g/cm³ 1.4-1.6
Latitudo mm ≤850
Longitudo mm ≤1300
Extensio vires Mpa ≥50
Compressive vires Mpa ≥100
Conductivity in area conductive S/cm ≥300
Electrical conductivity in welding area S/cm -
Carbon content % ≥87
Hydrogenium tradendi rate（0.2Mpa） cm 3 /cm 2 ·min <5x10 -6
Corrosio current A <5x10 -6
