Maius Carbon Fiber Reinforced Carbon-Plastic Bipolar Plate Fabricatores

Home / Productum / Electrode Materials / Carbon Fiber Roboratus Carbon-Plasticae Plate bipolaris

  • Carbon Fiber Roboratus Carbon-Plasticae Plate bipolaris

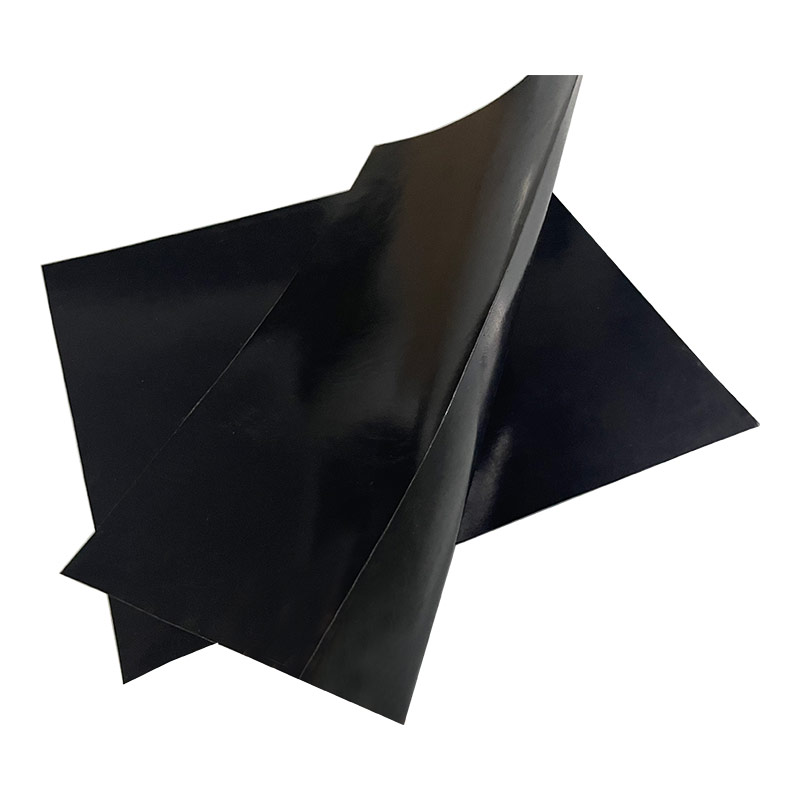

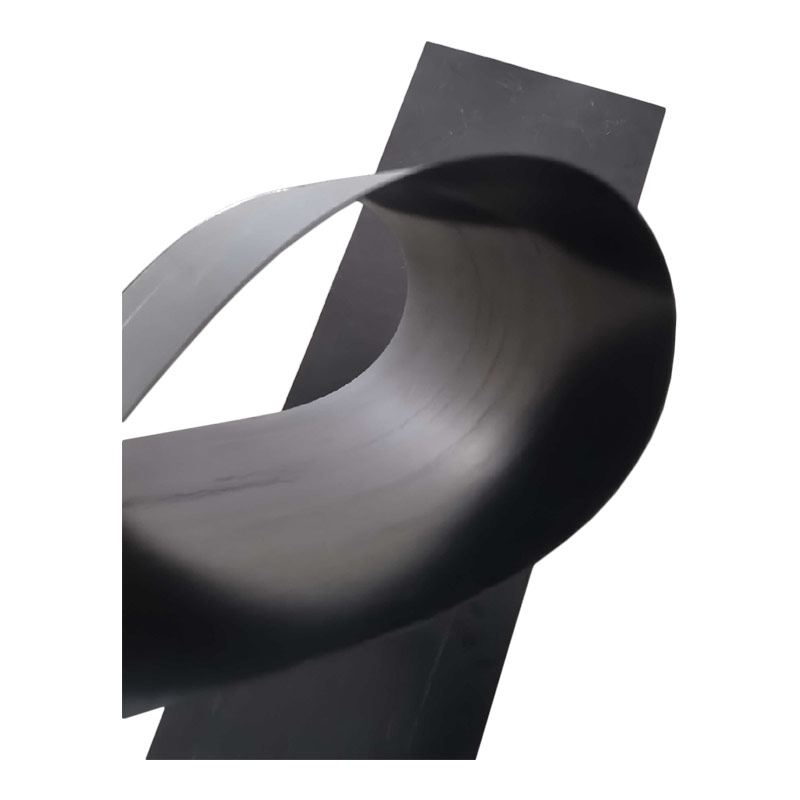

Carbon Fiber Roboratus Carbon-Plasticae Plate bipolaris

Productum

Societas carbo bipolaris nostrarum primae sunt fibra carbonis graphitae bipolaris in industria bracteae flexibiles auctae. Etiam in 360° inflexae non frangunt, cum compressione virium ≥ 200 Mpa et robur flexurale ≥ 50 Mpa. Ad pressionem 0.2 Mpa, hydrogenium permeabilitas est < 5 x 10 -6 cm 3 /cm 2 ·min. Conductivity electrica > 30 S/cm. applicari possunt in systematibus sicut vanadium redox et bromidum zinci.

Inquire Now

  • Product Details
  • Contact Us
Nomen Unitas Carbonis fibra ad laminam carbonio-plasticam bipolarem roboratam
Crassitudo mm 0.6/0.8
Density g/cm³ 1.4-1.6
Latitudo mm ≤900
Longitudo mm ≤1300
Extensio vires Mpa ≥50
Compressive vires Mpa ≥100
Conductivity in area conductive S/cm ≥30
Electrical conductivity in welding area S/cm ≥30
Carbon content % ≥60
Hydrogenium tradendi rate（0.2Mpa） cm 3 /cm 2 ·min <5x10 -6
Corrosio current A <5x10 -6
